Small Diameter High Speed Single Wall Corrugated Pipe Machine

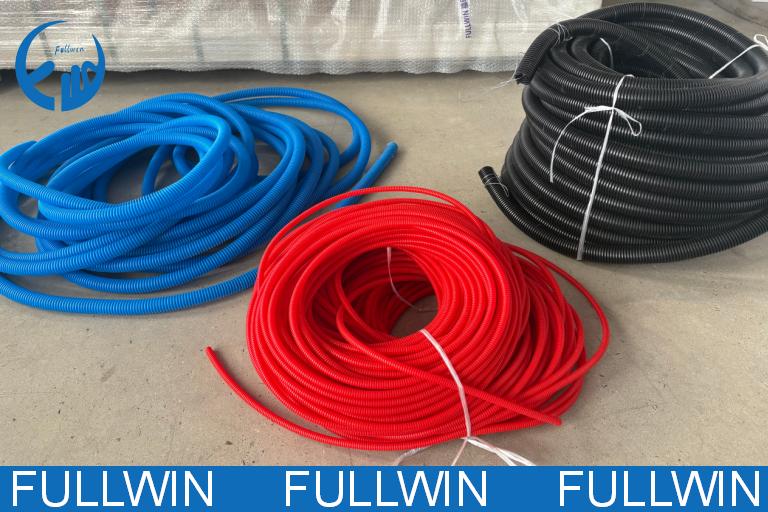

The production line specializes in the production of 4-12mm corrugated pipe, suitable for all kinds of wire bushing, automotive wire harness protection bushing. The production speed is fast, the equipment operation is stable.
Main Features:
- 1. Suitable to produce PVC, PE, PP, HDPE, LDPE pipe extrusion.
- 2. Raw Material: PP PE PVC granule.

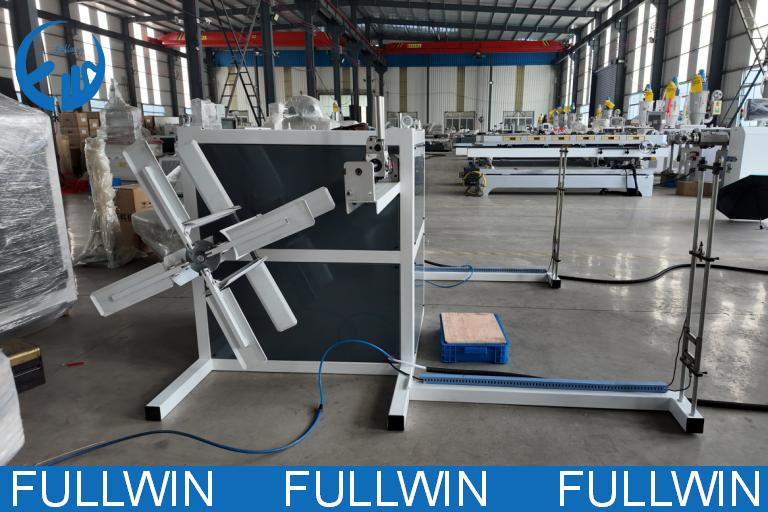

- 3. Mainly includes: vacuum drying auto feeder, Single Screw Extruder, die head, Core bar and mouth mold, Pipe Forming Machine, rewinder.
- 4. Supply technical service, formula guide and staple raw material purchase.
Our Advantages:
- 1. All parts are using domestic and foreign well-known brands.
- 2. Pipe diameter range: 4-12mm speed 15-20 m/min at least.
- 3. Can design as customer’s requirement.
Main Technique Parameter:
Pipe diameter range | 4mm-12mm |
Model of extruder | SJ45 |
Production capacity | 20-30kg/h |
Pairs of modules | 63 pairs |

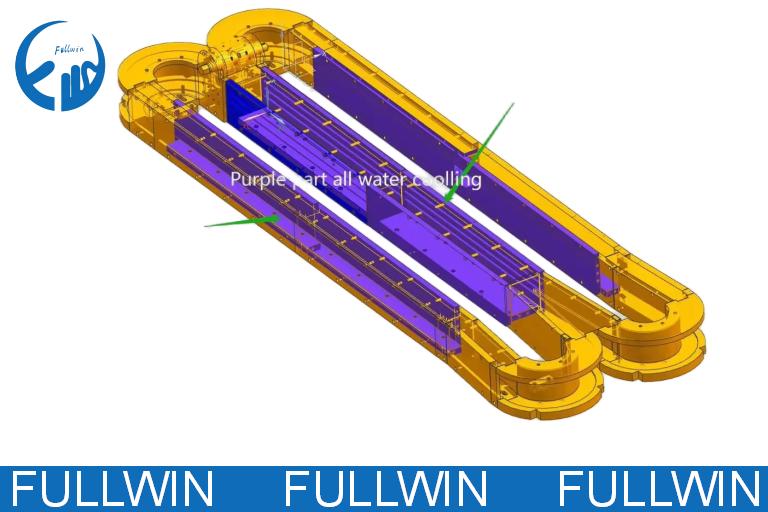

Cooling mode | Water cooling |
Production speed | 15-20m/min |
Electric Parts:
SIMENS Motor
ABB Frequency Converter
OMRON Temperature Control
Guomao Gear Reducer
Our Service:
Pre-Sales Service
- 1. Online Inquiry and consulting support 24 hours.
- 2. Sample testing support.
- 3. View our Factory.
- 4. Whole manufacturing process traceable.
After-Sales Service
- 1. Online Inquiry and consulting support 24 hours.
- 2. Sample testing support.
- 3. View our Factory.
- 4. Whole manufacturing process traceable.
Packing & Deliery:
Stretch Film Packaging
Wooden Box Plywood Packaging
Customized Packaging
